●Lighting: Adopt with large power LED from LUMILEDS
●Lighting constraction: Original reflector made the illuminating-effect exert perfect
●Drive circuit: Constant voltage and current controls, range-voltage input, UPS for lighting source
●Dome: Strengthened PC material, thermal resistant, endurance, anti-UV radiation, high regidity surface
●Supporting bracket: High strengthened nylon material
| Model | TD-6208-S0-H | TD-6208-S0-L | TD-6208-S1-H | TD-6208-S1-L |
| Input Voltage | DC12V | DC12V | DC12V | DC12V |
| Operating Voltage | DC10.5 ~ 14.5V | DC10.5 ~ 14.5V | DC10.5 ~ 14.5V | DC10.5 ~ 14.5V |
| Current Draw | 26.4A | 18.4A | 21A | 13A |
| Light Power | 136W | 88W | 108W | 60W |
| Mainly Power Form | Large Power LED | Large Power LED | Large Power LED | Large Power LED |
| Minor Power Form | 2 Alley Lights | 2 Alley Lights | 2 Alley Lights | 2 Alley Lights |
| Dome Colour Available | Red/Blue/Transparency | Red/Blue/Transparency | Red/Blue/Transparency | Red/Blue/Transparency |

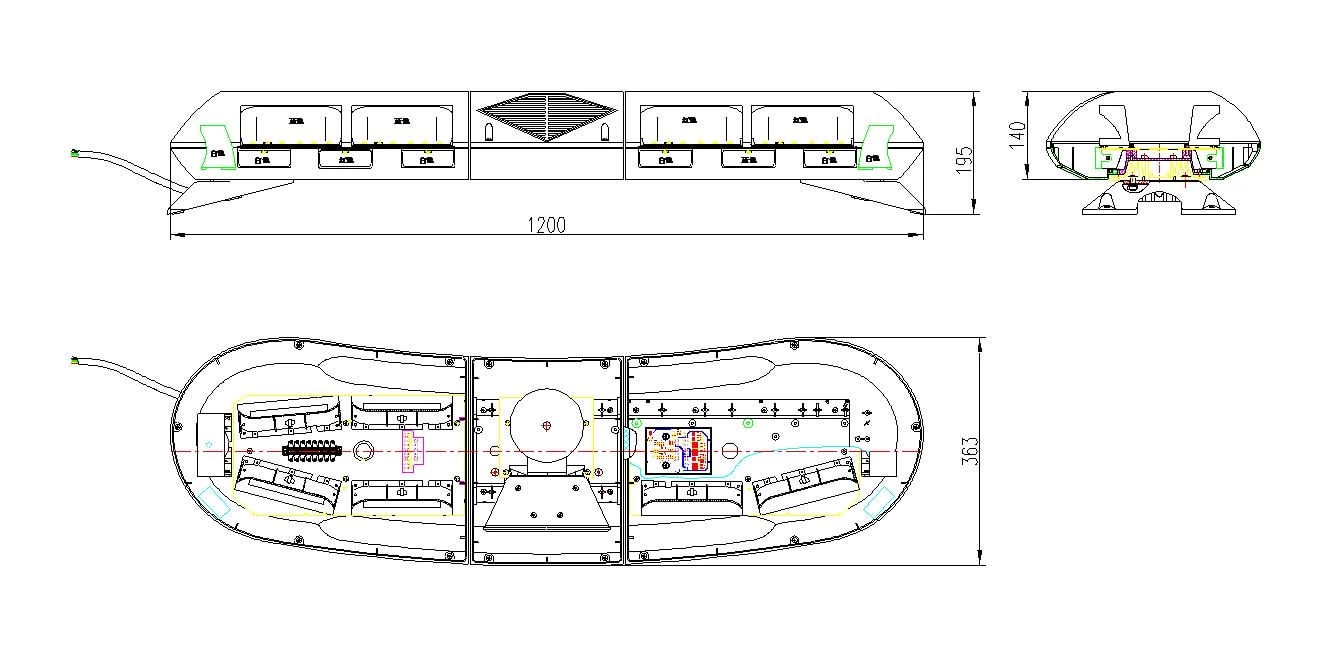

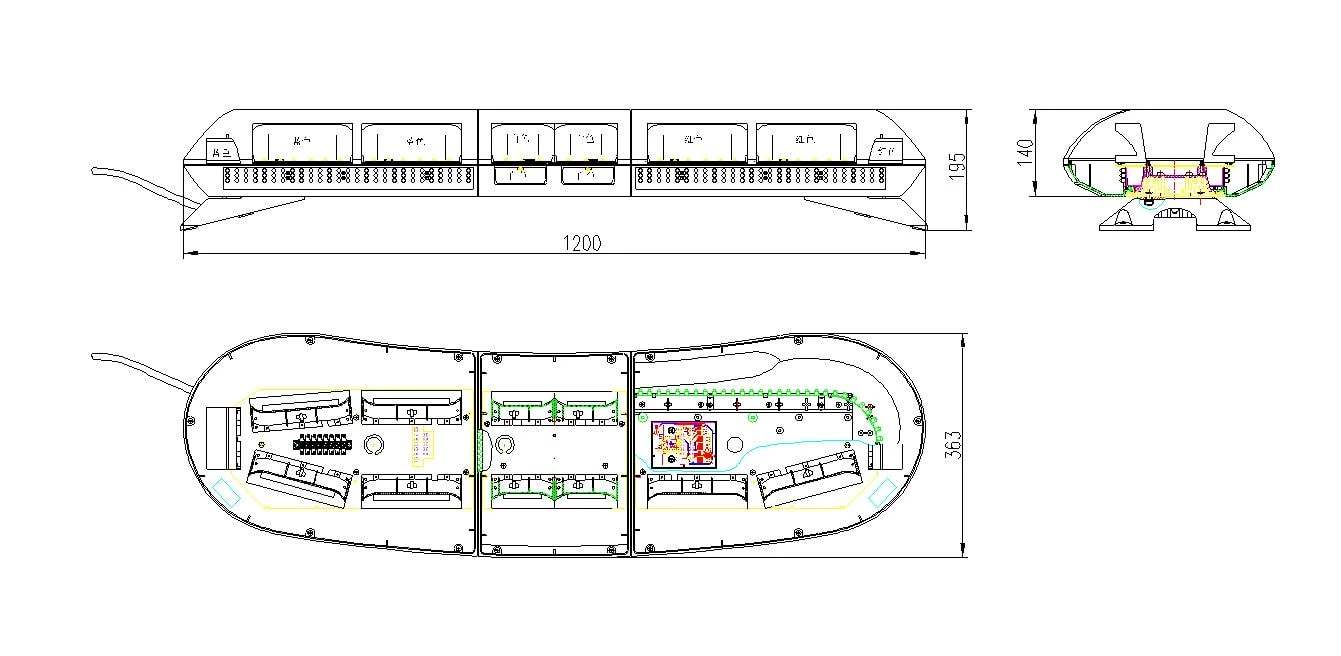

| Product Dimension | 1200*363*140mm | 1200*363*141mm | 1200*363*140mm | 1200*363*140mm |
| Net Weight | 17KG | 16.5KG | 19KG | 18.5KG |
| Gross Weight | 20KG | 19.5KG | 22KG | 21.5KG |
| Built-in Speaker | / | / | 150W | 150W |
| Packaging Dimension | 1300*500*300mm | 1300*500*303mm | 1300*500*302mm | 1300*500*303mm |
